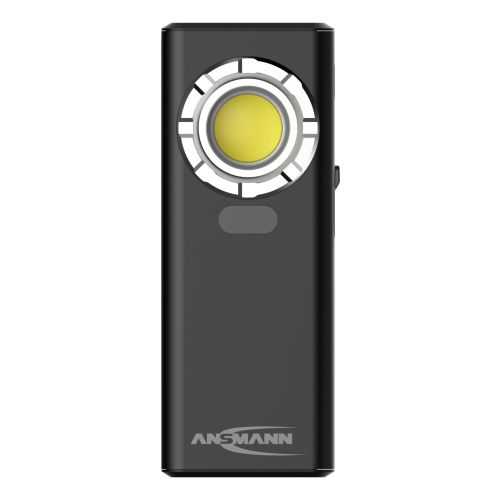

Worklight Worklight WL1200R-DS rechargeable

Work light WL1200R-DS with COB LED and distance sensor, rechargeable via type C socket

Please login to see price

More Information
Part number 1600-0564
EAN code 4013674195312
Product content Lamp, USB-C charge cable, operating instructions
Packaging unit pieces 8 Pieces
Product weight 0.167 kg
Dimensions 11.5 × 4.6 × 2.6 cm

Powerful luminosity

Thanks to the use of powerful COB LED technology, the luminaire produces an intensely bright light. The luminaire achieves a brightness of up to 1200 lumens. Thanks to the wide beam angle, the bright light is evenly distributed so that small details as well as large areas are homogeneously illuminated. The light of the LEDs has a colour temperature of approx. 5500-7500K, which does not strain the eyes too much. This means a pleasantly natural light that does not cause fatigue and enables relaxed working. In addition, there is another spot LED in the luminaire head, which can be used as a torch function.

Distance sensor function

At a distance of 2cm from an object, the light goes off and into standby mode. As soon as the distance increases again, the lamp switches on automatically, so you can simply put the lamp down or put it in your pocket while you are working and then continue working without having to press the switch.

Robust, shockproof and splashproof

The robust and shock-resistant aluminium housing (IK07) is particularly resistant to mechanical stress. Thanks to IPX6, the luminaire is splash-proof. This means you can concentrate fully on your work with optimal illumination indoors and outdoors.

Strong technical values

The lamp is powered by a powerful Li-Ion battery pack with 2,000mAh. This means that the LED light can be used anywhere and at any time. The work light lasts up to 1.5 hours in high mode and almost 10 hours in low mode. The additional LED provides up to 12 hours of light.

Instructions for use

This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.

More Information
Power supply rechargeable
Illuminant 9W + 3W LED
Illuminant power 9 W
Lamp life 10000h
Light modes

Low Mode / Middle Mode / High Mode

Maximum light range 55 m
Maximum luminous flux 1.200 lumens
Maximum brightness 3.500 Lux
Colour temperature 5500 - 7500 K
IK Protection Class IK07
Protection class IPX6
Color anthracite, black
Packaging cardboard box
Storage temperature -10 - 40 °C
Operating temperature -15 - 25 °C

Performance data

ModeMaximum light rangeMaximum luminous fluxMaximum brightnessMaximum operating time
Low Mode10 m80 lumens200 Lux7 hrs.
Middle Mode35 m600 lumens1.500 Lux5,5 hrs.
High Mode55 m1.200 lumens3.500 Lux1,5 hrs.
Lamp, USB-C charge cable, operating instructions
