Home Charger 230PD with cable, manual

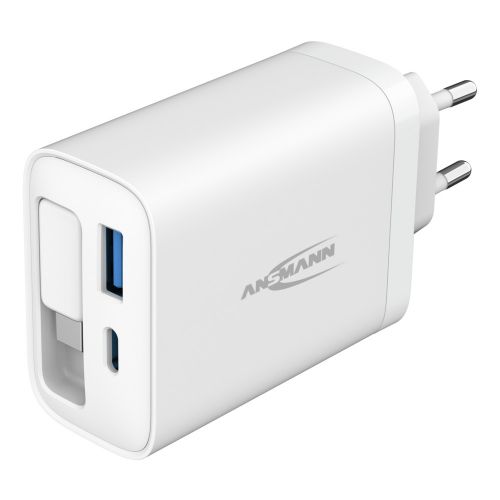

Home Charger 230PD with cable
Smart USB charger with integrated cable and 30 W for smartphones, tablets and other USB devices
| Part number | 1001-0186 |
|---|---|
| EAN code | 4013674222278 |
| Product content | Home Charger 230PD with cable, manual |
| Packaging unit pieces | 12 Pieces |
| Product weight | 0 kg |
| Dimensions | 10.6 × 5.3 × 3.2 cm |
The compact USB charger from ANSMANN is the ideal solution for efficient and safe charging of your devices – at home or on the go. With an output of 30 W and two USB outputs (USB A and USB C), it offers maximum flexibility.
The permanently integrated USB-C cable provides additional convenience and eliminates the need to carry separate cables. The semi-automatic cable pull allows the cable to be pulled out easily and retracted automatically and in a controlled manner after use.
Thanks to intelligent charge control and proven Multisafe technology, your application will be charged optimally and safely. The very low standby consumption makes the charger particularly energy-efficient and economical.
The modern, space-saving design with EU plug fits perfectly into any socket and is ideal for everyday use.
| Input voltage | 110 - 240V AC |
|---|---|
| Max. input current | 0.85 A |
| AC frequency | 60Hz / 50Hz |
| Port | USB type C, USB-A |
| Output voltage | 5V DC |
| Max. output current | 3 A |
| Maximum power | 30 W |
| Charging protocol | PPS, Quick Charge 2.0, Quick Charge 3.0, Quick Charge 4.0, Power Delivery Profile 2, Power Delivery Profile 3 |
| USB-Ports | 2 |
| Average operational efficiency | 86,6 % |
| Efficiency at low load | 83,5 % |
| Power consumption at no load | 0,100 W |
| Color | white |
| Packaging | cardboard box |
| Storage temperature | -25 - 70 °C |
| Operating temperature | -20 - 35 °C |
Charging currents
| Mode | Voltage range | Max. current | Max. power |
|---|---|---|---|
| USB-C | 5,0 V DC | 3,0 A | 15,0 W |
| USB-C | 9,0 V DC | 3,0 A | 27,0 W |
| USB-C | 12,0 V DC | 2,5 A | 30,0 W |
| USB-A | 5,0 V DC | 3,0 A | 15,0 W |
| USB C + Kabel | 5 V DC | 3,0 A | 15,0 W |
| USB C + USB A | 5 V DC | 3,0 A | 15,0 W |
| USB A + Kabel | 5 V DC | 3,0 A | 15,0 W |
| USB-A + USB-C + Kabel | 5 V DC | 3,0 A | 15,0 W |
| PPS | 5 - 11 V DC | 3,0 A | 33,0 W |
| USB-A | 9 V DC | 2,0 A | 18,0 W |
| USB-A | 12 V DC | 1,5 A | 18,0 W |
