Battery pack 3,6 V/7800 mAh/1S3P
Lithium ion Battery pack 3,6 V/7800 mAh/1S3P

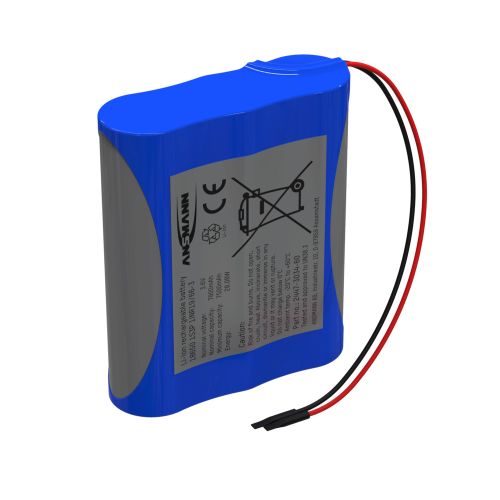

1S3P 28,08 Wh lithium-ion battery pack, incl. electronic protection circuit (BMS) for use in many mobile applications. Battery pack in shrink sleeve with 12 cm output cable and open cable ends
| Part number | 2447-3034-60 |
|---|---|
| EAN code | 4013674222155 |
| Product content | Battery pack 3,6 V/7800 mAh/1S3P |
| Packaging unit pieces | 56 Packs |
| Product weight | 0.102 kg |
| Dimensions | 5.7 × 2 × 6.9 cm |
ANSMANN has a wide range of standard Li-ion battery packs, which are also available in small batches. All battery packs are based on conventional Li 18650 standard cells and have a UN transport test (UN 38.3) as standard. Various versions in parallel or series connection guarantee the right power supply for practically any application.
Lithium-ion batteries are the energy source of the future. With an energy density around twice as high as NiMH cells and very low self-discharge, this technology is the optimum energy source for all kinds of applications. Li-ion battery packs are thermally stable and very cold-resistant. The integrated protective circuit protects against overcharging, overloading, short circuits and deep discharging.
- Nominal voltage: 3,6 V
- Nominal capacity: 7800 mAh
- Max. discharge current: 7,8 A
- Dimensions: 57×20×69 mm
- Weight: 102 g
- Approvals: UN3480, IEC 62133-2:2017
| Nominal voltage | 3,6 V |
|---|---|
| Nominal capacity | 7800 mAh |
| Cell chemistry | Lithium ion |
| Energy | 28,08 Wh |
| Color | blue |
| Storage temperature | -20 - 20 °C |
| Operating temperature | -20 - 60 °C |
