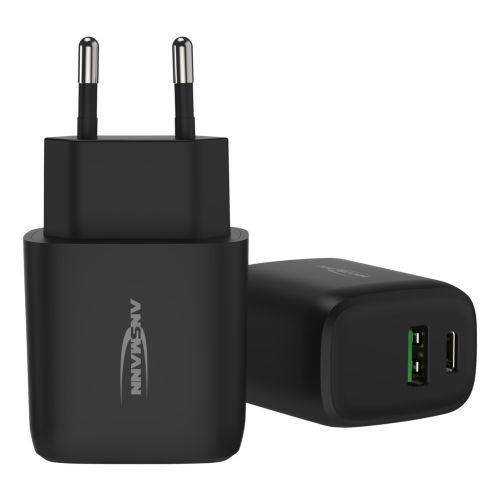

Home Charger HC218PD black
Intelligent 20 W USB charger with Power Delivery & Quick Charge technology for smartphones, tablets and other USB devices
| Part number | 1001-0109 |
|---|---|
| EAN code | 4013674176557 |
| Product content | Home Charger HC218PD black, manual |
| Packaging unit pieces | 74 Pieces |
| Product weight | 0.049 kg |
| Dimensions | 8 × 4.3 × 2.5 cm |
| Warranty | 3 years |
With 2 USB ports and a power rating of 20 W, the USB-PD/QC charger from ANSMANN offers the ideal charging solution for your application. The intelligent charge controller is compatible with Power Delivery & Quick Charge - optimising the charging of your device at all times. The Multisafe technology provides safety throughout the whole charge process. Very low stand-by consumption makes this charger not only efficient, but also economical.
Das freiwillige Prüfzeichen „GS" steht für „Geprüfte Sicherheit". Produkte die mit dem GS-Zeichen gekennzeichnet sind, entsprechen den Anforderungen des deutschen Produktsicherheitsgesetzes (ProdSG). Der Prüfumfang des GS-Prüfzeichens deckt alle wesentlichen Produktmerkmale ab, wie elektrische Sicherheit, die Verwendung von Chemikalien und Gefahrstoffen, ergonomische Aspekte und Geräuschemissionen.
Es bescheinigt Produkten, dass bei sachgemäßer Verwendung keine Gefahren für den Benutzer drohen.
Außerdem umfasst es eine regelmäßige Überwachung der Produktion vor Ort im Werk.
| Input voltage | 100 - 240V AC |
|---|---|
| Max. input current | 0.5 A |
| AC frequency | 60Hz / 50Hz |
| Port | USB type C, USB-A |
| Output voltage | 5 - 12V DC |
| Max. output current | 3 A |
| Maximum power | 20 W |
| Functions | Overcurrent protection, Overvoltage protection, Short circuit protection |
| Charging protocol | Quick Charge 3.0, USB, Power Delivery Profile 3 |
| USB-Ports | 2 |
| Average operational efficiency | 76,4 % |
| Efficiency at low load | 65,0 % |
| Power consumption at no load | 0,090 W |
| Color | black |
| Packaging | cardboard box |
| Storage temperature | -25 - 75 °C |
| Operating temperature | -20 - 25 °C |
Charging currents
| Mode | Voltage | Max. current | Max. power |
|---|---|---|---|
| USB-A QC | 5,0 V | 3,0 A | 15,0 W |
| USB-A QC | 9,0 V | 2,0 A | 18,0 W |
| USB-A QC | 12,0 V | 1,5 A | 18,0 W |
| USB-C PD | 5,0 V | 3,0 A | 15,0 W |
| USB-C PD | 9,0 V | 2,2 A | 20,0 W |
| USB-C PD | 12,0 V | 1,7 A | 20,0 W |
| USB-A & USB-C | 5,0 V | 3,0 A | 15,0 W |
