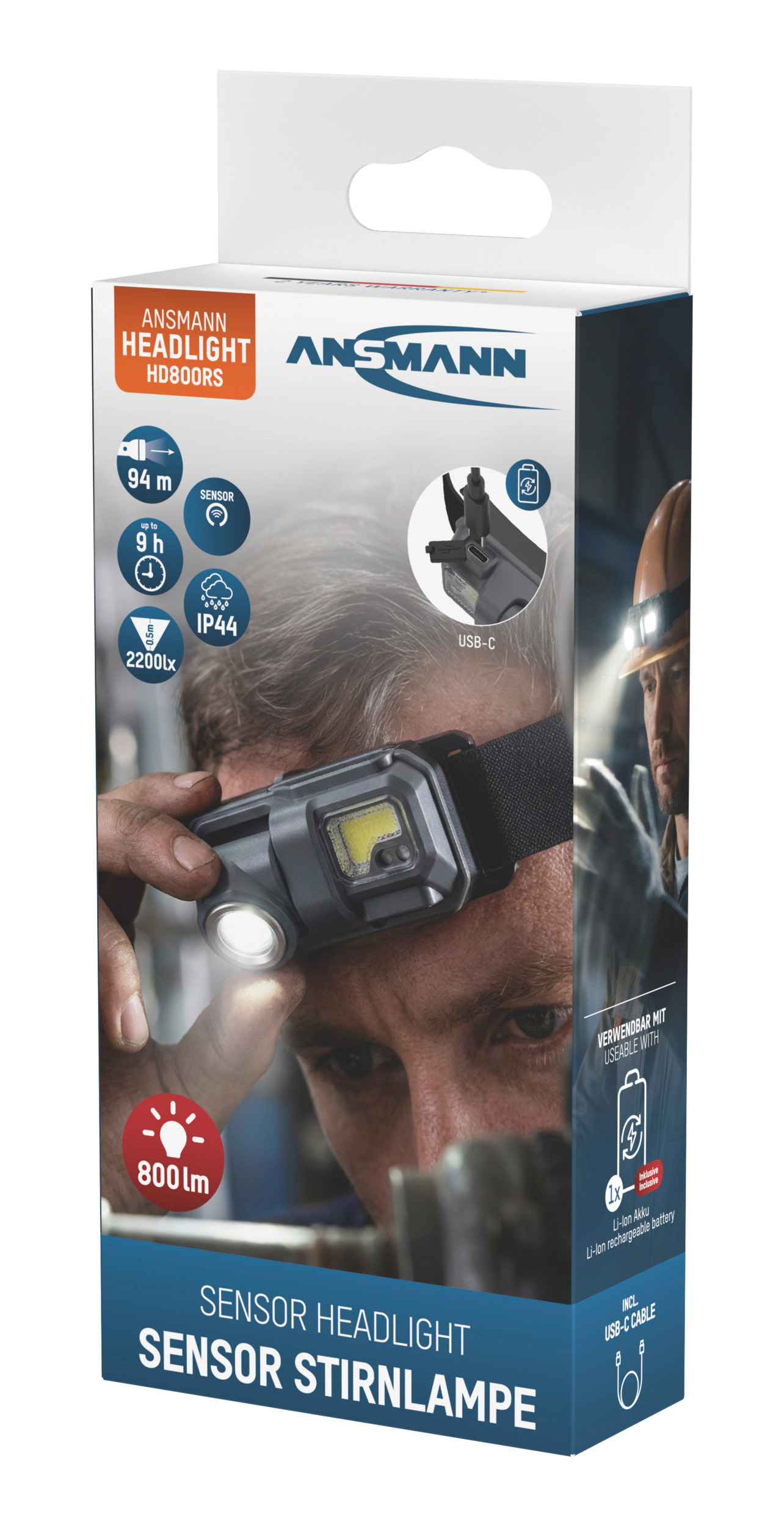

Headlamp, charging cable, user manual

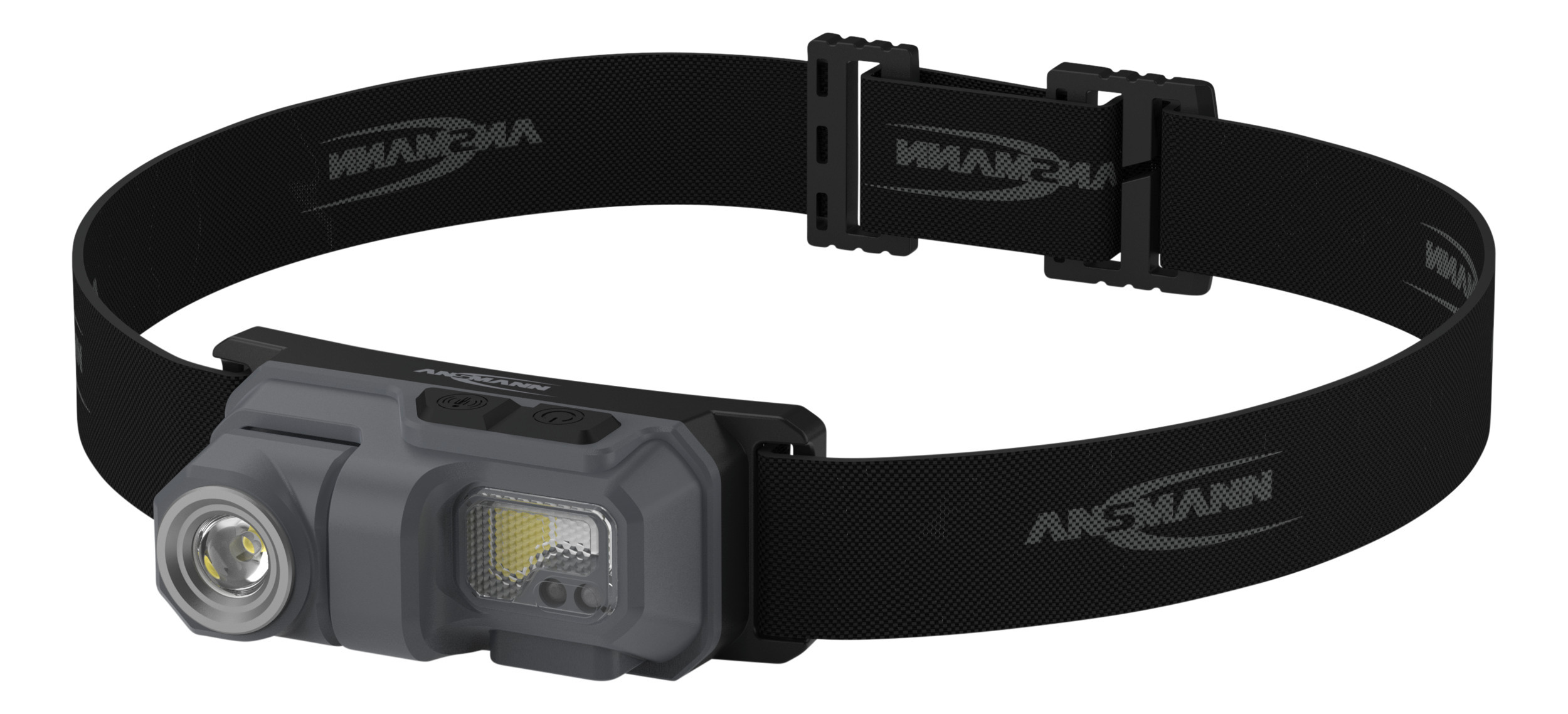

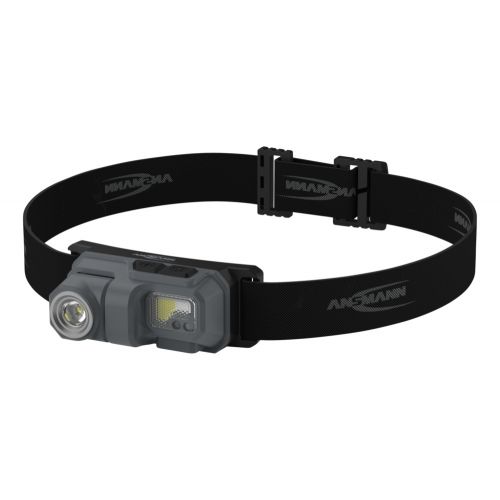

Headlight HD800RS rechargeable

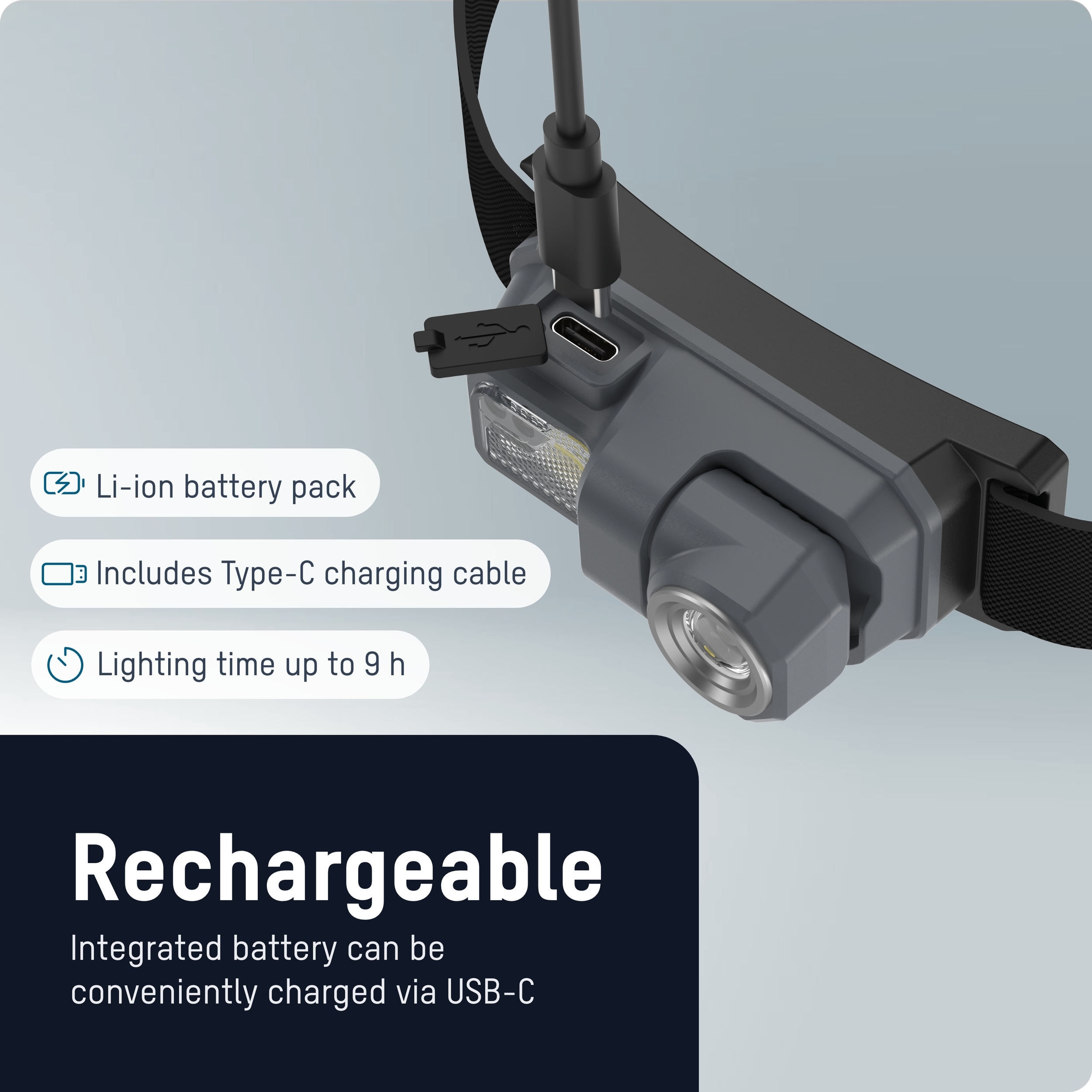

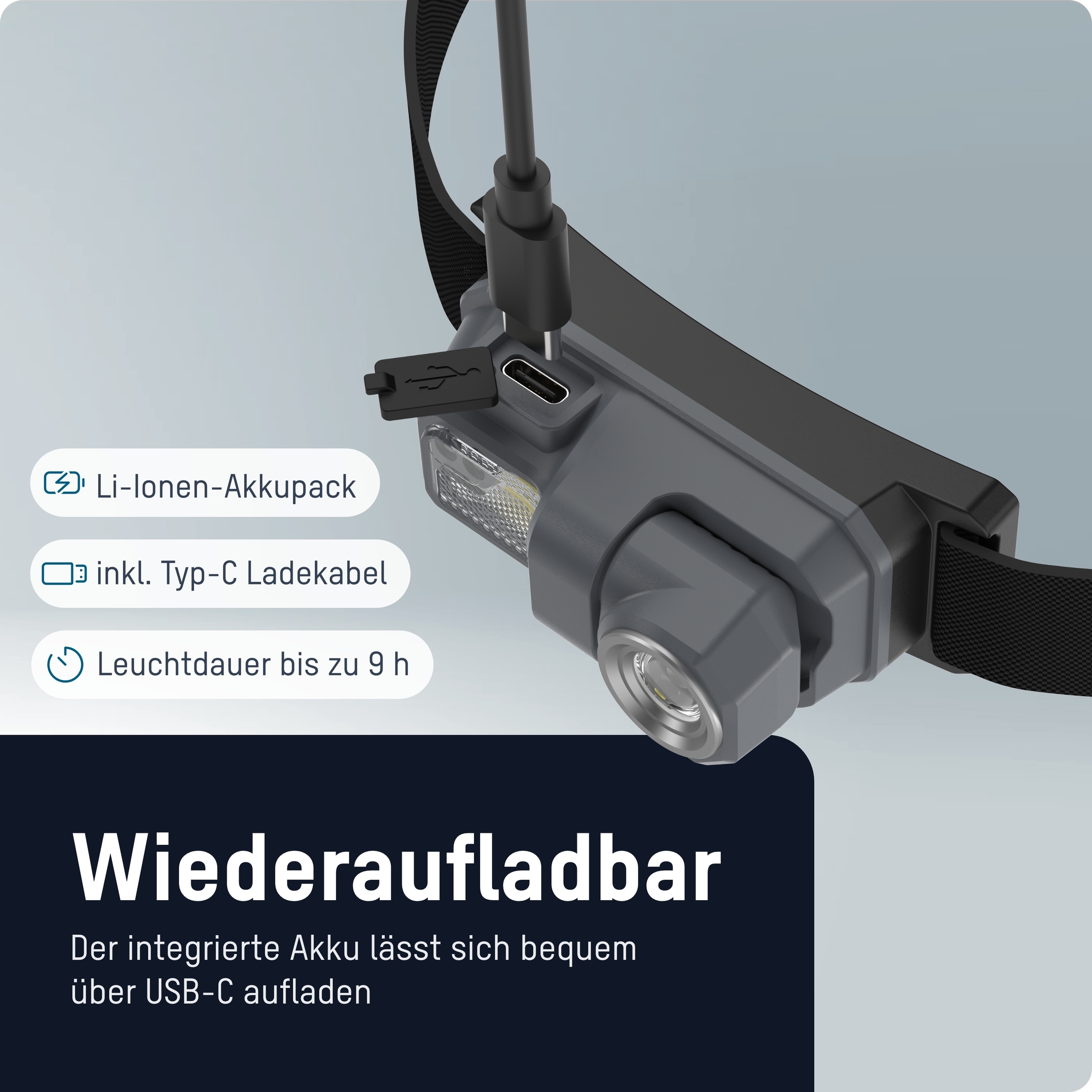

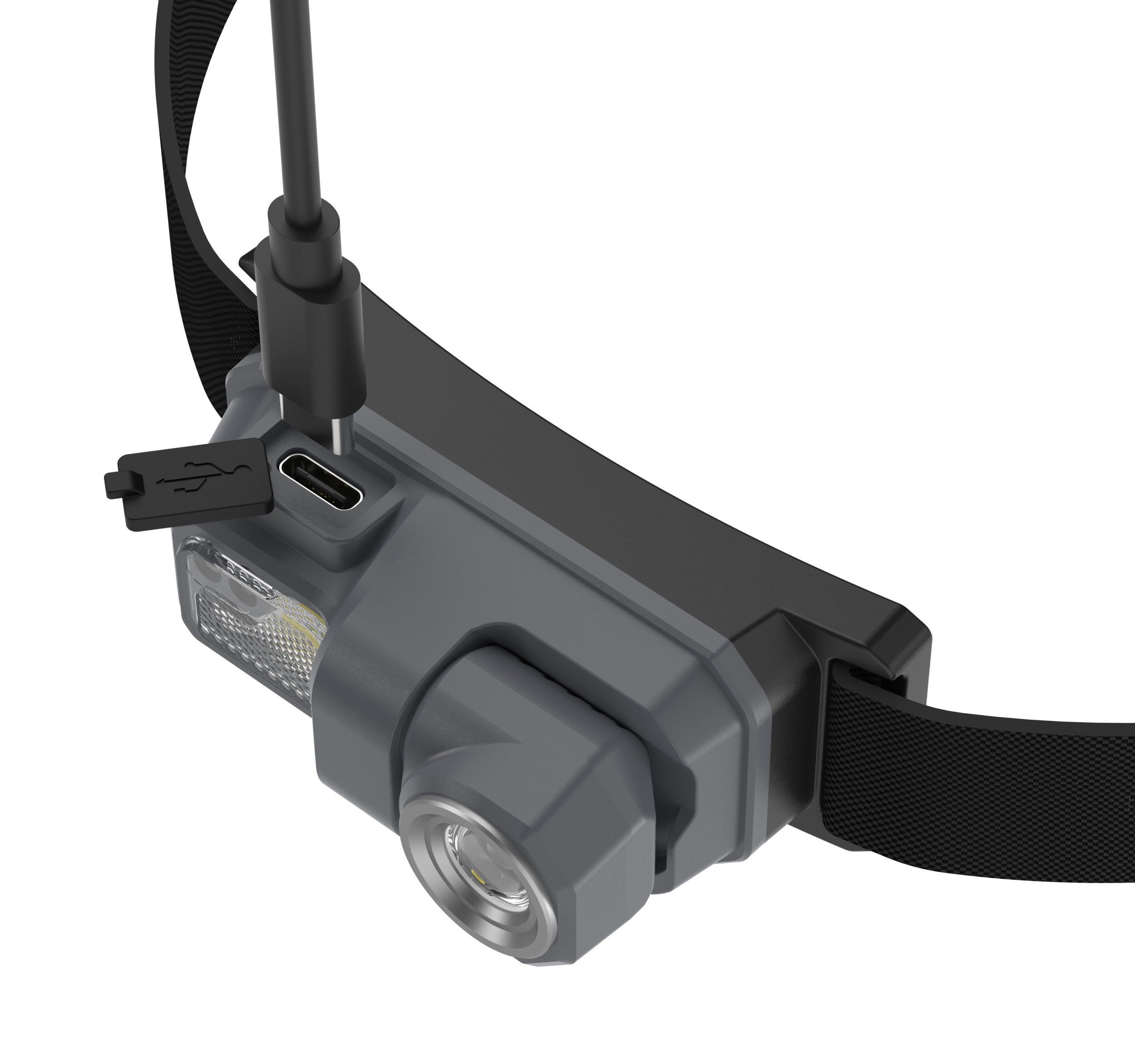

Sensor headlamp with swivelling head, COB and spot LEDs delivering up to 800 lumens and 7 different lighting modes, rechargeable via USB-C port
| Part number | 1600-0838 |
|---|---|
| EAN code | 4013674230501 |
| Product content | Headlamp, charging cable, user manual |
| Packaging unit pieces | 6 Pieces |
| Product weight | 0.656 kg |
| Dimensions | 7.9 × 3.3 × 4 cm |
| Warranty | 2 years |
Swivelling lamp head and sensor technology

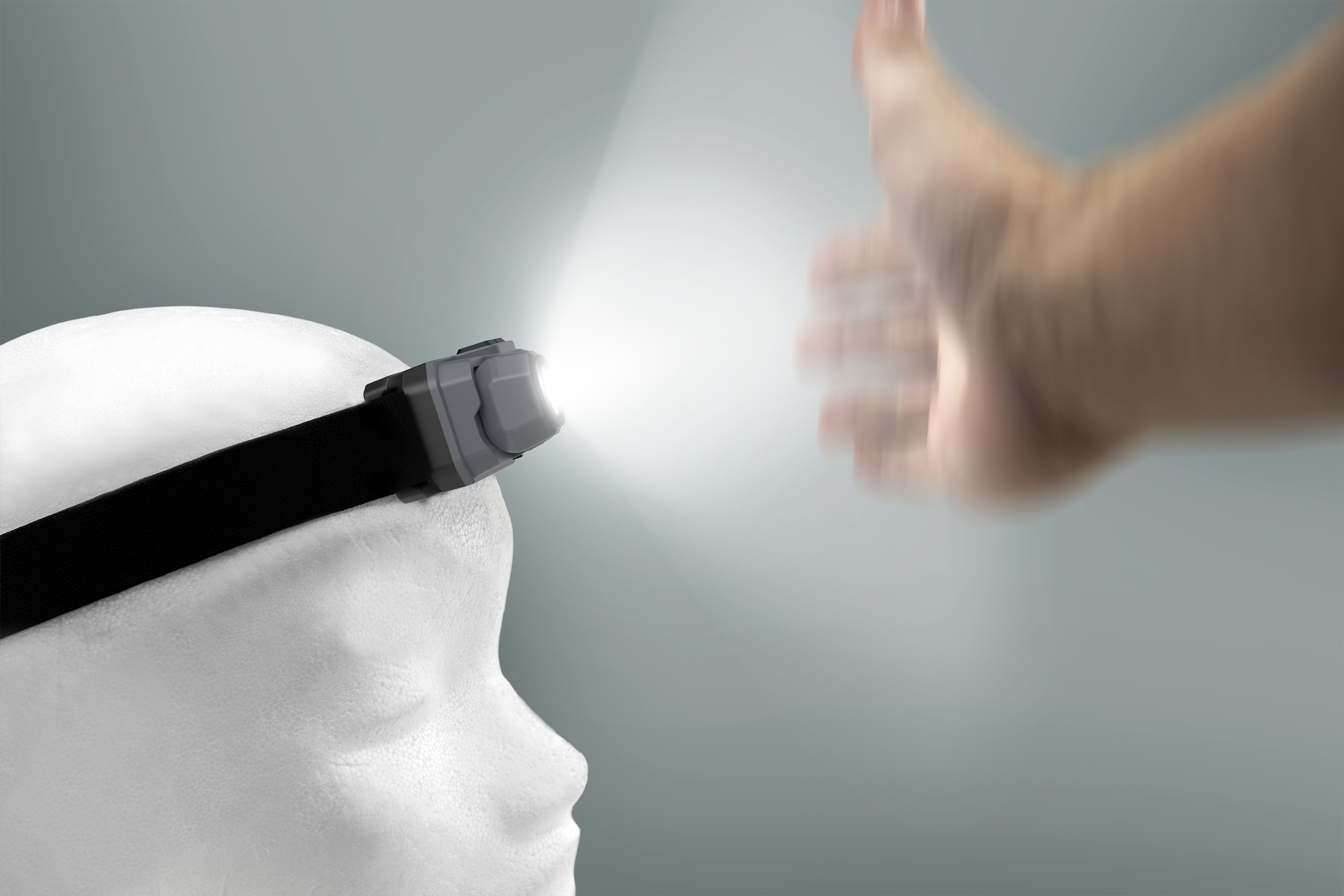

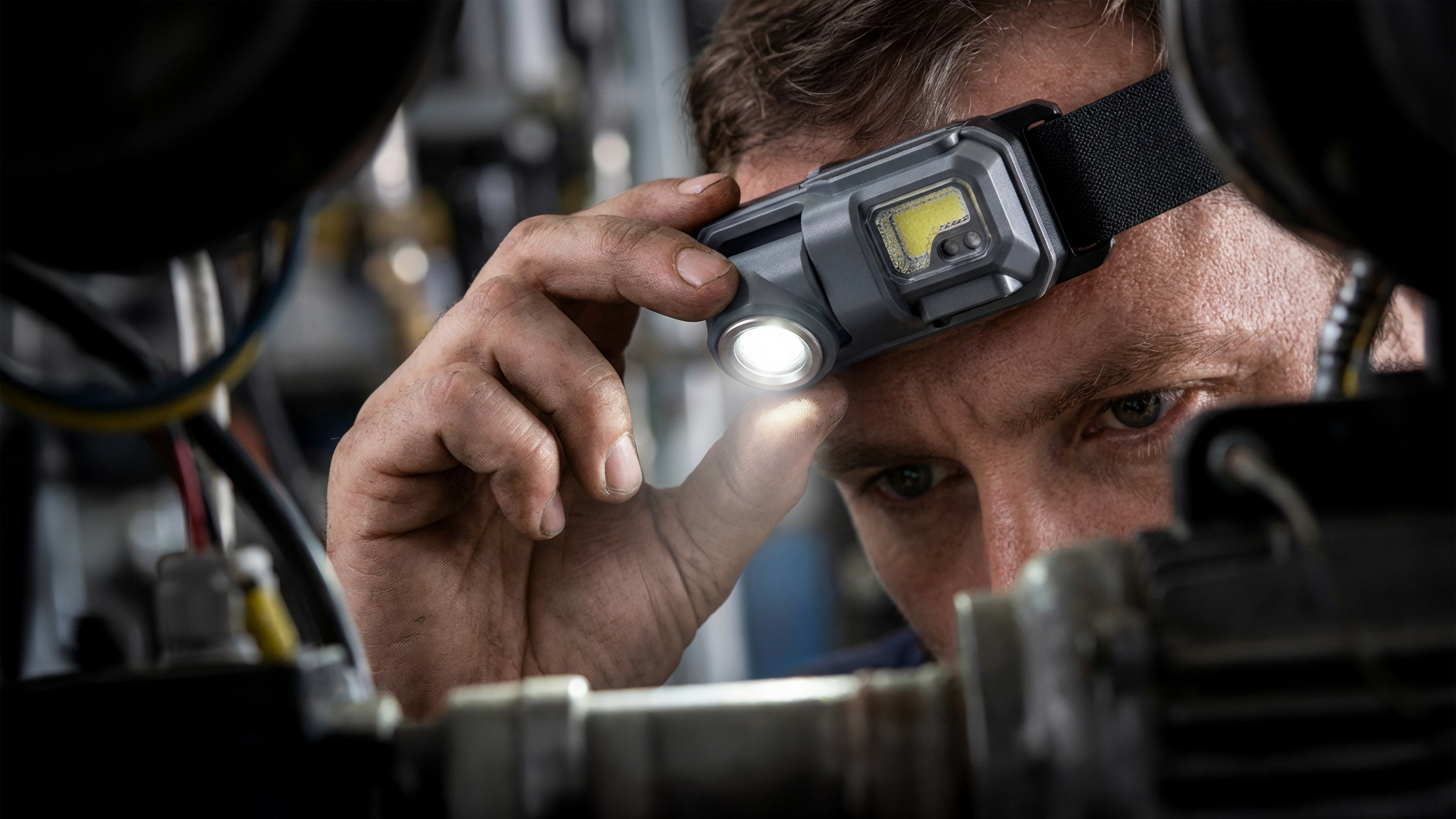

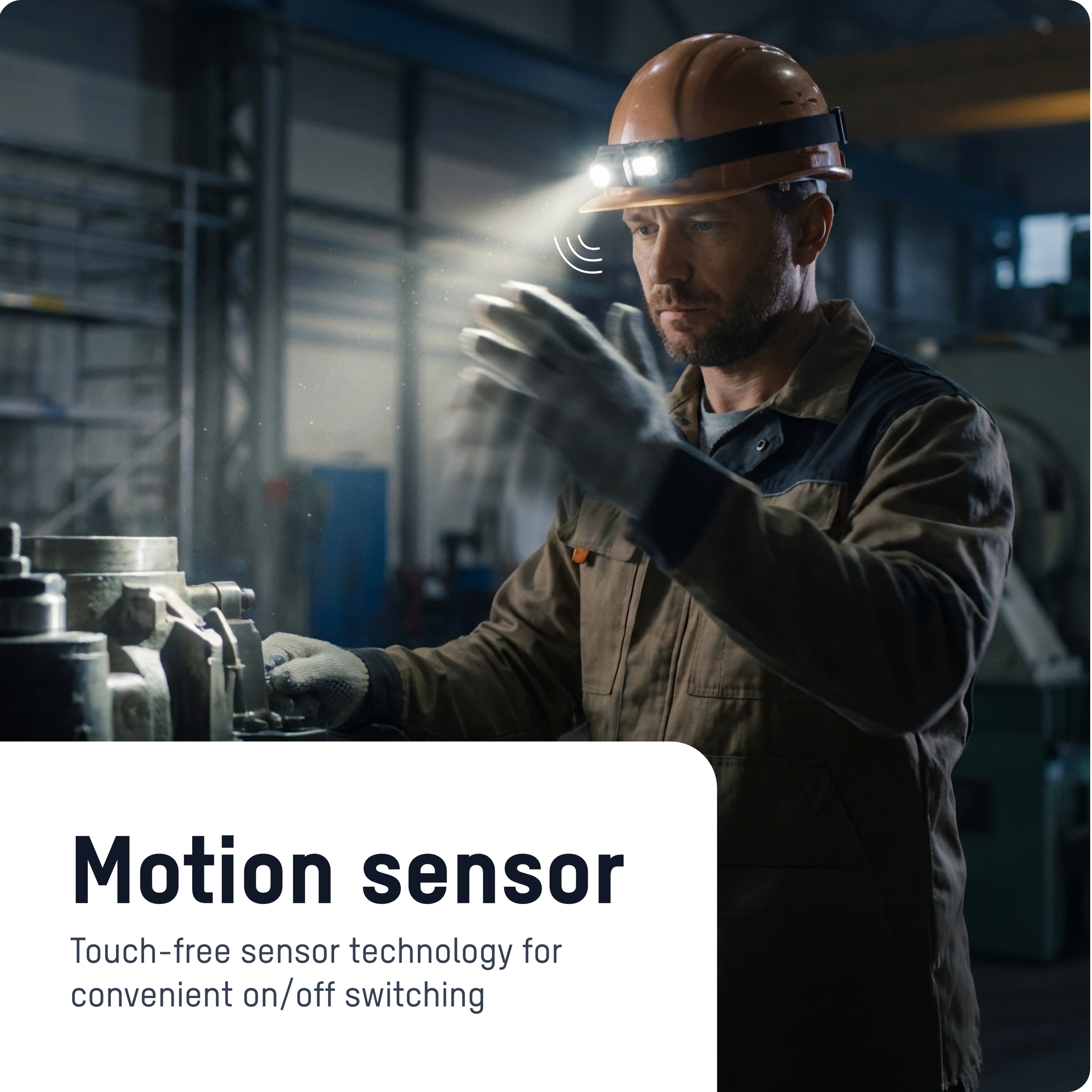

This high-quality HD800RS headlamp ensures maximum illumination whilst allowing full freedom of movement. Thanks to the swivelling lamp head, the light beam can be precisely aligned – ideal for precise work during DIY projects. Thanks to the integrated sensor, the lamp can be operated hands-free, leaving both hands free and ensuring the light is always where it is needed. In addition, the ergonomic headband offers a secure fit and high wearing comfort, even during prolonged use.

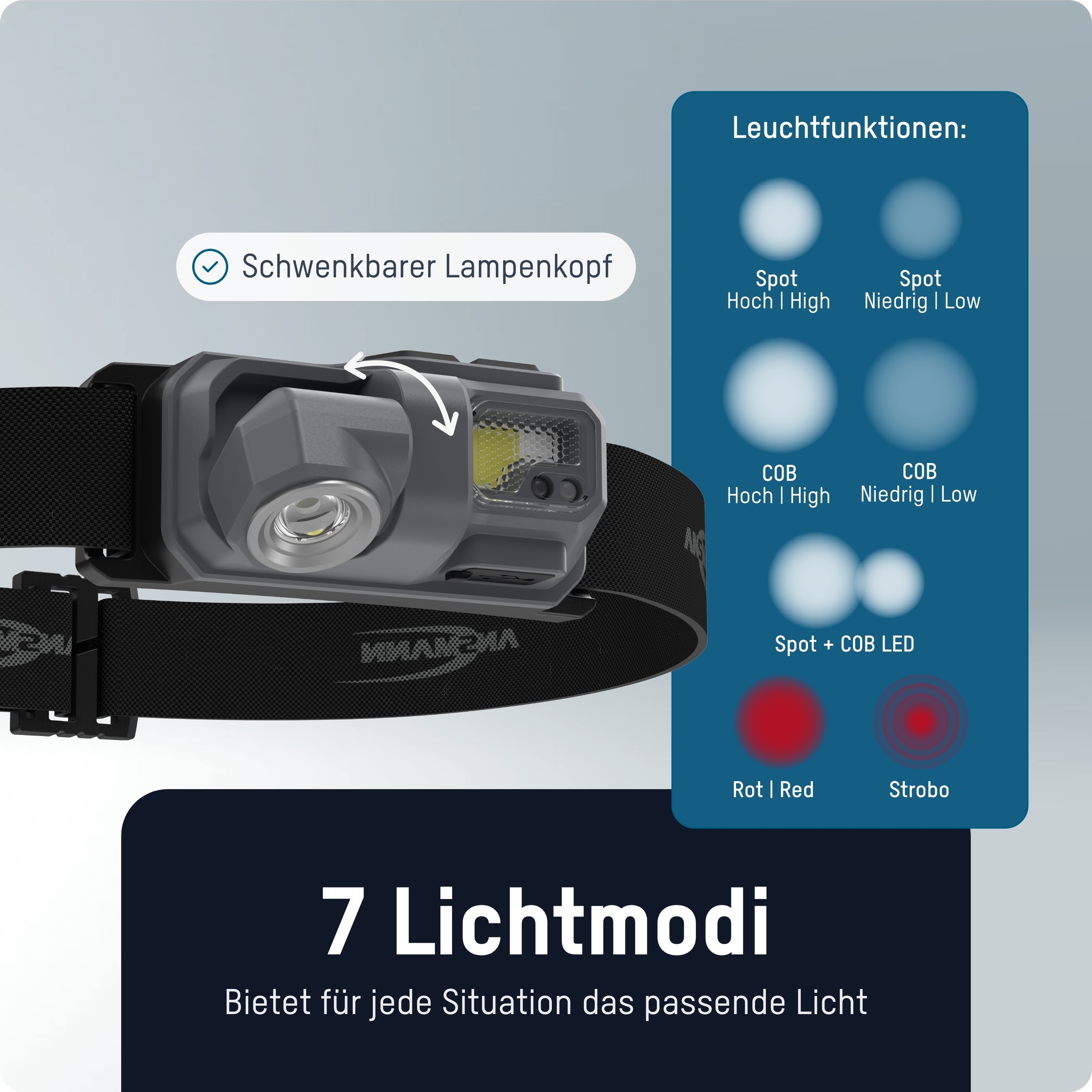

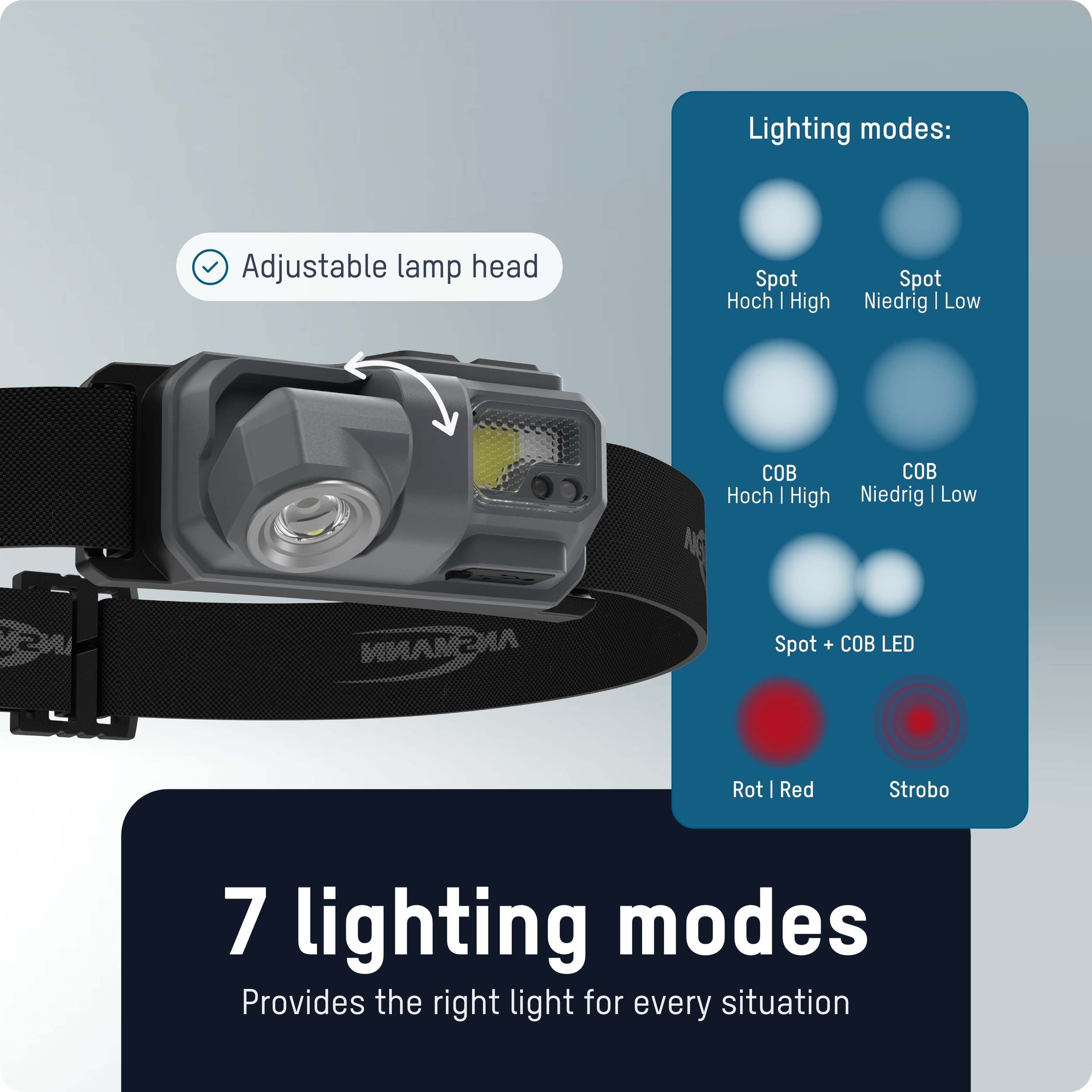

7 lighting functions and child’s play operation
The HD800RS is equipped with two easily accessible push buttons that can be operated effortlessly even whilst wearing the lamp. Control is simple and reliable even when wearing gloves – ideal for use with gloves.
The following switch functions can be selected via the two buttons:
- COB LED + SPOT LED
- High-power COB LED
- Low-power COB LED
- High-power spot LED
- Low-power spot LED
- Red LED
- Red strobe LED
The perfect light for every situation

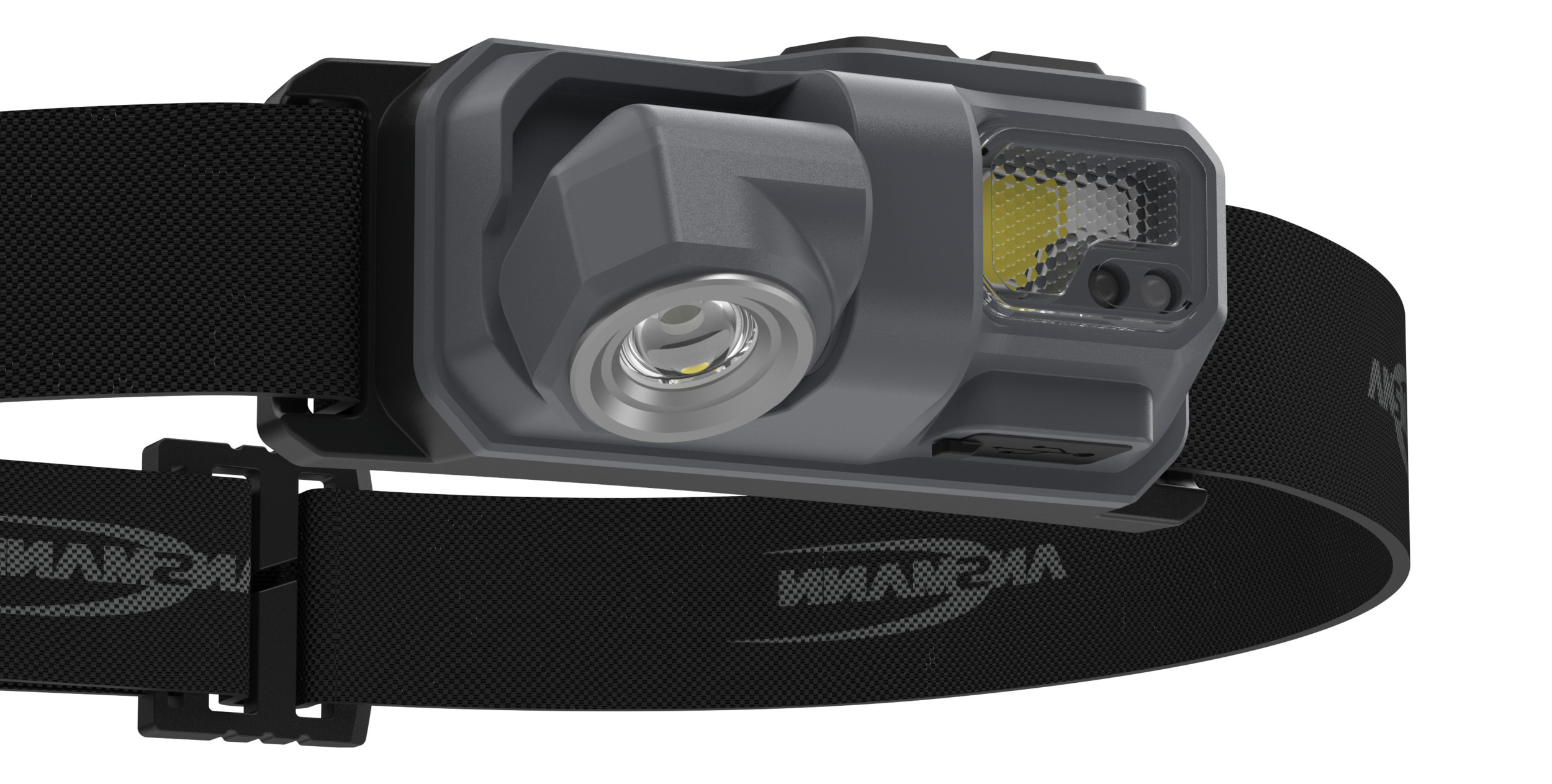

The HD800RS combines two light sources to offer maximum flexibility.
The spot LED focuses the light precisely and provides a long beam range, perfect for long-distance visibility during outdoor activities or professional use.
The COB LED provides broad, even illumination at close range – ideal for working in the immediate vicinity.
Thanks to this combination, the lamp offers both wide-area work light and focused long-range light – adjustable at the touch of a button, depending on your needs.
High wearing comfort meets lightweight design
The elastic headband can be individually adjusted and sits securely on any head, offering optimal support for every application. Weighing just 85 g including the battery, the ANSMANN HD800RS is one of the lightest headlamps available. This means it is barely noticeable even during prolonged use and is particularly comfortable to wear on the head.
Instructions for use
This lamp is designed for mobile use, the included LED lamp is not replaceable and not suitable for household room illumination.
| Illuminant | 5W SMD LED + 4,5W COB-LED |
|---|---|
| Lamp life | 20.000 h |
| Maximum light range | 94 m |
| Maximum luminous flux | 800 lumens |
| Maximum brightness | 2.200 Lux |
| Protection class | IP44 |
| Maximum operating time | 9 hrs. |
| Light modes |
|
| Power supply | Li-Po 3,7V | 1200 mAh | 4.44 Wh |
| Power supply | rechargeable |
| Color | anthracite, black |
| Storage temperature | -5 - 35 °C |
| Operating temperature | 0 - 35 °C |
| Housing material | Plastic + Aluminium |
Performance data
| Mode | Maximum light range | Maximum luminous flux | Maximum brightness | Maximum operating time |
|---|---|---|---|---|
| COB + SPOT-LED | 94 m | 800 lumens | 2.200 Lux | |
| SPOT-LED / High | 75 m | 310 lumens | 1.400 Lux | 3,5 hrs. |
| SPOT-LED / Low | 30 m | 55 lumens | 220 Lux | 9 hrs. |
| COB-LED / High | 20 m | 180 lumens | 100 Lux | 1,5 hrs. |
| COB-LED / Low | 11 m | 60 lumens | 32 Lux | 5,5 hrs. |
| RED-LED | 3 m | 5 lumens | 3 Lux | 30 hrs. |
